Partial Discharge Detector - Smart Analyzer
局部放電監測儀

1. For various HV power equipment detection
2. Instant alert email
3. Two to six channels for PD signal identification
4. Economical and efficient

1. 適用各種電力設備監測
2. 在線即時預警郵件通知
3. 多重物理量雙訊號辨識重複確認
4. 高經濟高效能

Features

• Diagnose the insulation deterioration of HV equipment to avoid equipment failure and property lost.

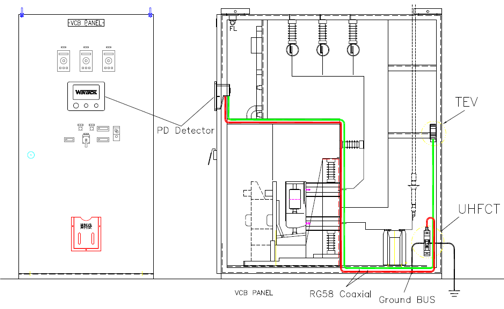

• Two to six channels PD detection with various sensors depending on types of HV equipment.
• Comparison of two physical phenomena for PD identification to avoid false alarm resulted from external disturbances.
• Phase Resolved Partial Discharge (PRPD) analysis including PD signal and PD repetition can accurately identify PD.
• PD data trend chart is for predictive maintenance.
• The best instrument to detect early failure of HV equipment.

特色

• 可診斷電力設備絕緣劣化現象，避免因設備故障所造成的經 濟損失，其適用於變壓器、配電盤、GIS等各種設備。
• 雙訊號比對辨識，排除外部訊號干擾，避免誤發警報。
• 放電訊號相位(PRPD)分析與局放發生次數相對應，同時提供即時波形、FFT、TF Map，精確辨識局部放電訊號特徵。
• 記錄局放歷程資料，建立趨勢圖，預先掌握設備絕緣狀態。
• 具備現場警示與電子郵件警示功能，提醒顧客即時因應。
• PD Detector是電力設備早期故障預警的最佳偵測儀器。

PD Detector Touch Panel setting | PD 觸控設定

Partial Discharge Detector Technical Specifications | 技術規格

Type | 型號	WPDD-SA
Channels | 通道數	2 - 4 - 6
Bandwidth | 頻寬	1MHz – 80MHz
Measurement range | 量測範圍	1mV – 4V (50Ω)
Power | 電源	90 – 264 VAC / 45 HZ – 66 Hz​​
Dimensions | 尺寸(寬x高x厚)	220mm x 170mm x 140 mm
Weigh | 重量	<2.0 kg
Function​ | 功能	24 hours on-line monitoring 7" color touch screen Discharge level display (safety, warning, alarm) PD phase, number of PD, PD trend record Off-site data backup Alarm light, warning sound, and email delivery 24小時在線監測 7吋彩色觸控螢幕 顯示放電等級 (安全，警告，危險) 紀錄局部放電相位(PRPD)、放電次數、放電趨勢圖；顯示即時波形、FFT、TF Map 資料異地備份 警示燈號、警示聲響、警示電子郵件​(需有網際網路)
